Full-Component Fault Gas Monitoring in Oil
Narrow Bandwidth for Precise Measurement
Electronically Modulated Laser
No Carrier Gas Required, Maintenance-Free, and Live-Line Installation
Constant Pressure and Temperature Vacuum Degassing
Valve Block Type Pipeline Connection
Online Monitoring Device for Dissolved Gases in Transformer Oil Based on Laser Photoacoustic Spectroscopy Technology
General Description:
The GLRoad Transformer Dissolved Gas Analysis (DGA) is capable of monitoring and analyzing nine types of dissolved gases in transformer oil, featuring high measurement accuracy, high reliability, real-time monitoring, and maintenance-free operation.
By utilizing semiconductor lasers and laser spectroscopy technology, the device significantly improves the gas monitoring performance in transformer oil, markedly enhances the detection rate of incipient faults in main transformers, and thus reduces fault occurrence rates and operation and maintenance costs.
Meanwhile, it adopts a targeted optimal design for the common leakage problem of oil and gas circuits to improve reliability, and also has the advantages of no carrier gas replacement required and maintenance-free operation.
Typical Specification:GLR-DGM601

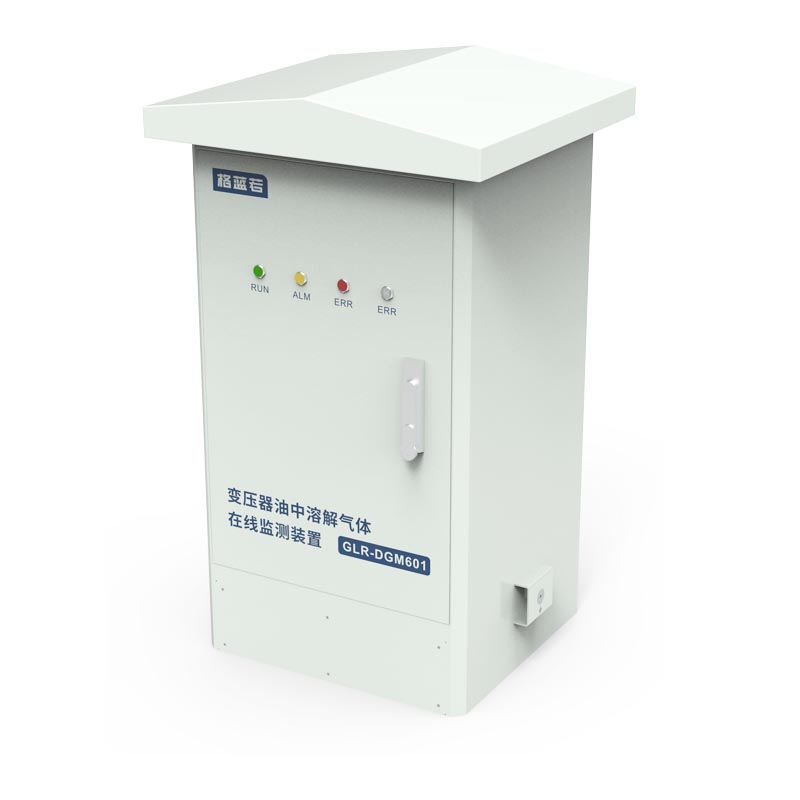

Multi-component Oil and Gas Online Monitoring Device GLR-DGM601 | ||||
Category | Specifications and Parameters | Fault Gas Types | MDL | Measurement Error |
Power Supply | AC 220V±15% | H2 | 1μL/L | ±1μL/L or ±30% |
Rated Power | Maximum 1.2kw | CO2 | 25μL/L | ±25μL/L or ±30% |
Temperature | -40℃~ +55℃ | CO | 25μL/L | ±25μL/L or ±30% |
Humidity | 5% ~ 95%RH | CH4 | 0.5μL/L | ±0.5μL/L or ±30% |
Protection Rating | IP55 | C2H6 | 0.5μL/L | ±0.5μL/L or ±30% |
Overall Dimensions | 650mm(W)*694mm(D)*1090mm(H) | C2H4 | 0.5μL/L | ±0.5μL/L or ±30% |
Weight | 186kg | C2H2 | 0.1μL/L | ±0.1μL/L or ±30% |
O2 | 1000μL/L | 1000μL/L or ±30% | ||
N2 | 2000μL/L | 2000μL/L or ±30% | ||
Typical Specification:GLR-DGM701
Low-component Oil and Gas Online Monitoring Device GLR-DGM701 | ||||
Category | Specifications and Parameters | Fault Gas Types | MDL | Measurement Error |
Power Supply | AC 220V±15% | H2 | 1μL/L | ±1μL/L or ±30% |
Rated Power | Maximum 1.2kw | CO | 25μL/L | ±25μL/L or ±30% |
Temperature | -40℃ ~ +55℃ | C2H4 | 0.5μL/L | ±0.5μL/L or ±30% |
Humidity | 5% ~ 95%RH | C2H2 | 0.1μL/L | ±0.1μL/L or ±30% |
Protection Rating | IP55 | *The above gases are available for optional configuration. | ||
Overall Dimensions | 425mm(W)*205mm(D)*645mm(H) | |||
Weight | 50kg | |||
